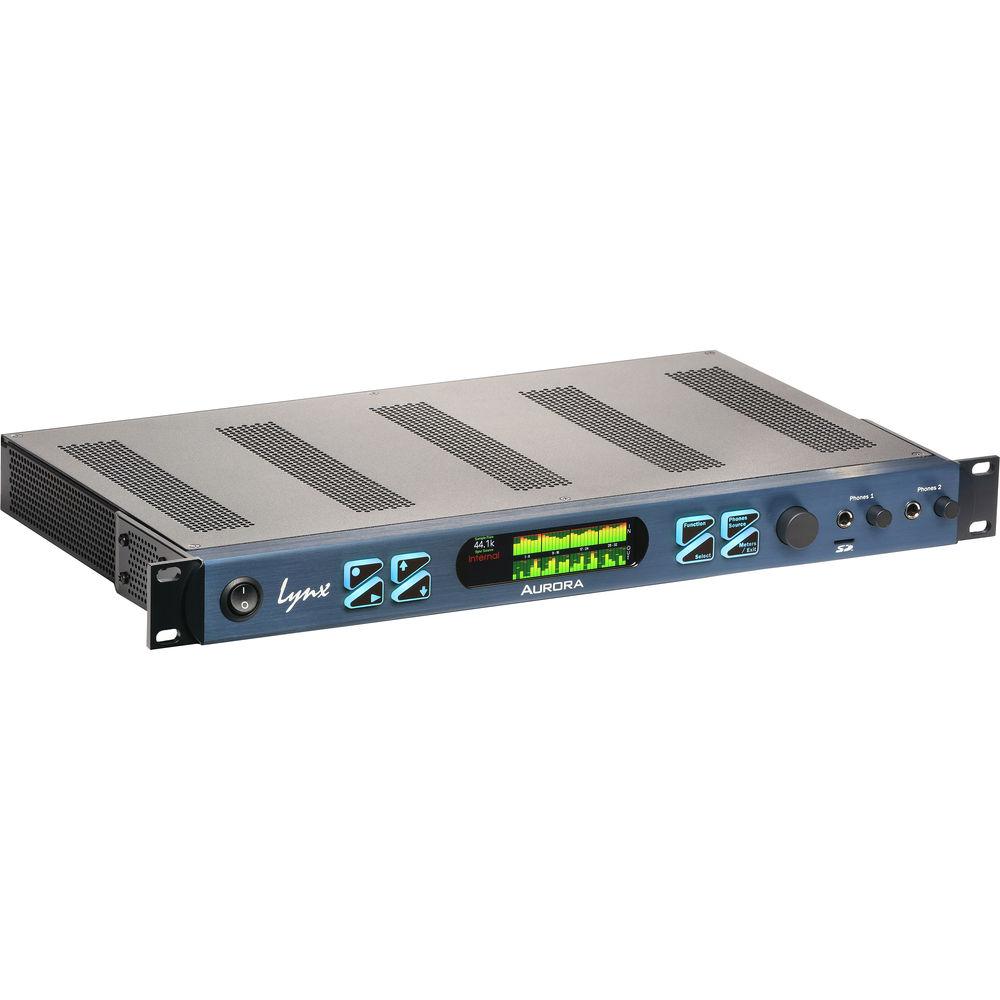

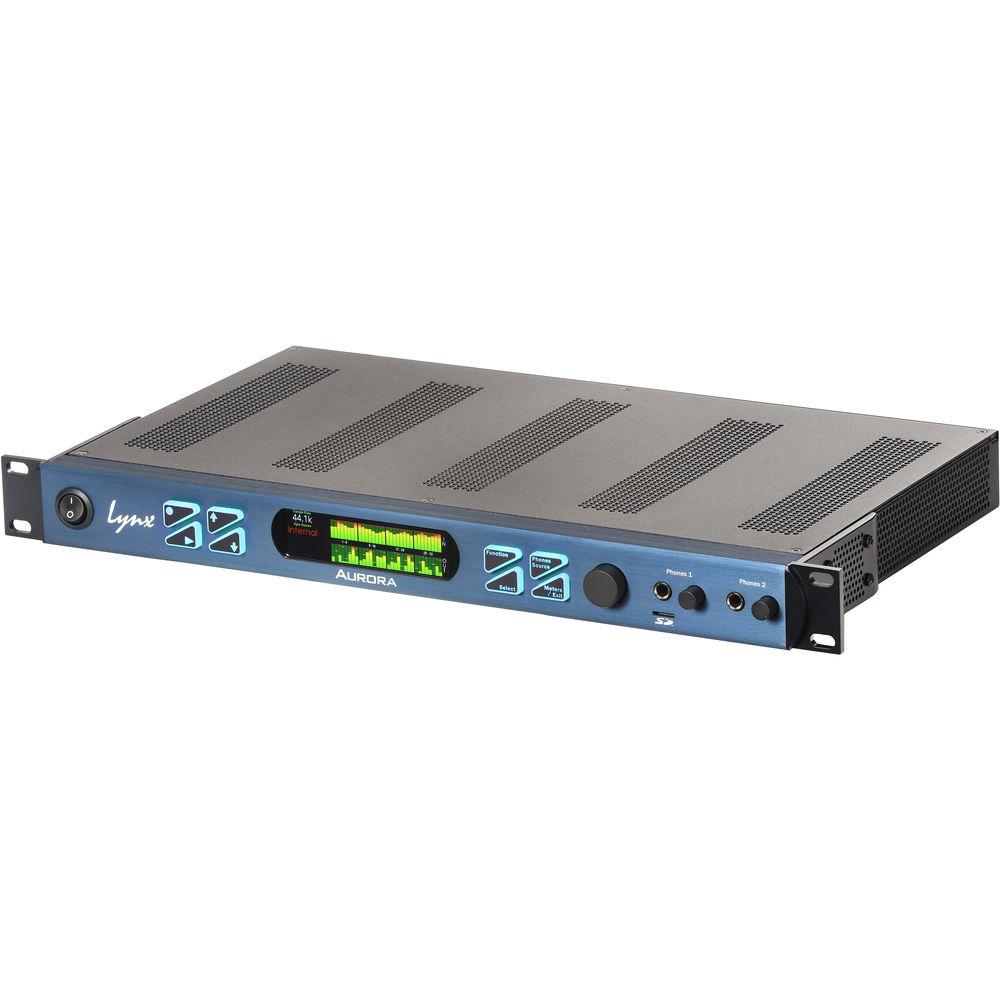

Product description The Aurora(n) 32 HD from Lynx Studio Technology is a mastering-grade 32-channel AD/DA converter, which supports up to 24-bit / 192 kHz conversion and comes with a preinstalled LT-HD interface for Pro Tools|HD. It offers significant performance and flexibility improvements over the company's well-regarded line of Aurora converters, providing an even greater level of wide-open, uncompressed, and unequalized audio for studios, mastering facilities, remote recording, broadcast, live performance, or production installations.The Aurora(n) 32 HD combines Hilo-like technology with the latest FPGA processors, to achieve greater transparency and reduction of both noise and distortion. One wordclock input and three outputs let you use the unit as a master clock, or slave it to an external clock. In addition, the Aurora(n) is equipped with an LSlot expansion bay which allows for a wide array of current connectivity options such as Thunderbolt, Dante, Pro Tools | HD, and USB, but can also be used to add more channels and additional hardware, as your production needs evolve.Other features include an on-board microSD player/recorder capable of up to 32 channels of direct recording and playback, ideal when working in the field. Two headphone outputs with independent volume control let you monitor your sound with audiophile-grade precision, while a bright LCD display gives you immediate access to all levels and functions, right from the front pa - Upgraded version of the company's well-regarded line of Aurora converters
- Redesigned to use technology borrowed from the company's Hilo Converter Technology (HCT) combined with the latest FPGA technology, for significant improvements in transparency and reductions of both noise and distortion
- Supports 32 channels of mastering-quality AD/DA conversion at up to 24-bit 192 kHz
- Preinstalled LT-HD interface for Pro Tools|HD
- LSlot expansion bay allows for a wide array of current connectivity options to include Thunderbolt, Dante, Pro Tools | HD, USB, and future formats
- Two audiophile-grade headphone outputs with independent volume control
- On-board microSD player/recorder capable of up to 32 channels of direct recording and playback
- SynchroLock 2 high-performance sample clock technology provides 300,000:1 reduction in jitter, 5-second lock time, extremely low jitter, and excellent absolute accuracy
- Wordclock I/O provides one input and three outputs on BNC connectors
- 480x128 TFT LCD display provides immediate access to all levels and functions and ensures that you see every piece of critical data, from just about any viewing angle
- Universal power supply built-in, no wall-warts
- 1 RU rack-space design with no fan and silent operation, so you can keep unit in the recording room, with no need for isolation from distracting fan noise
- Designed and built in the USA
UPC: 690534041602 In the Box Lynx Studio Technology Aurora(n) 32 HD - 32 Channel AD/DA Converter with LT-HD Card for Pro Tools|HD IEC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Studio Technology Aurora 32 HD - 32 Channel AD DA Converter with LT-HD Card for Pro Tools|HD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

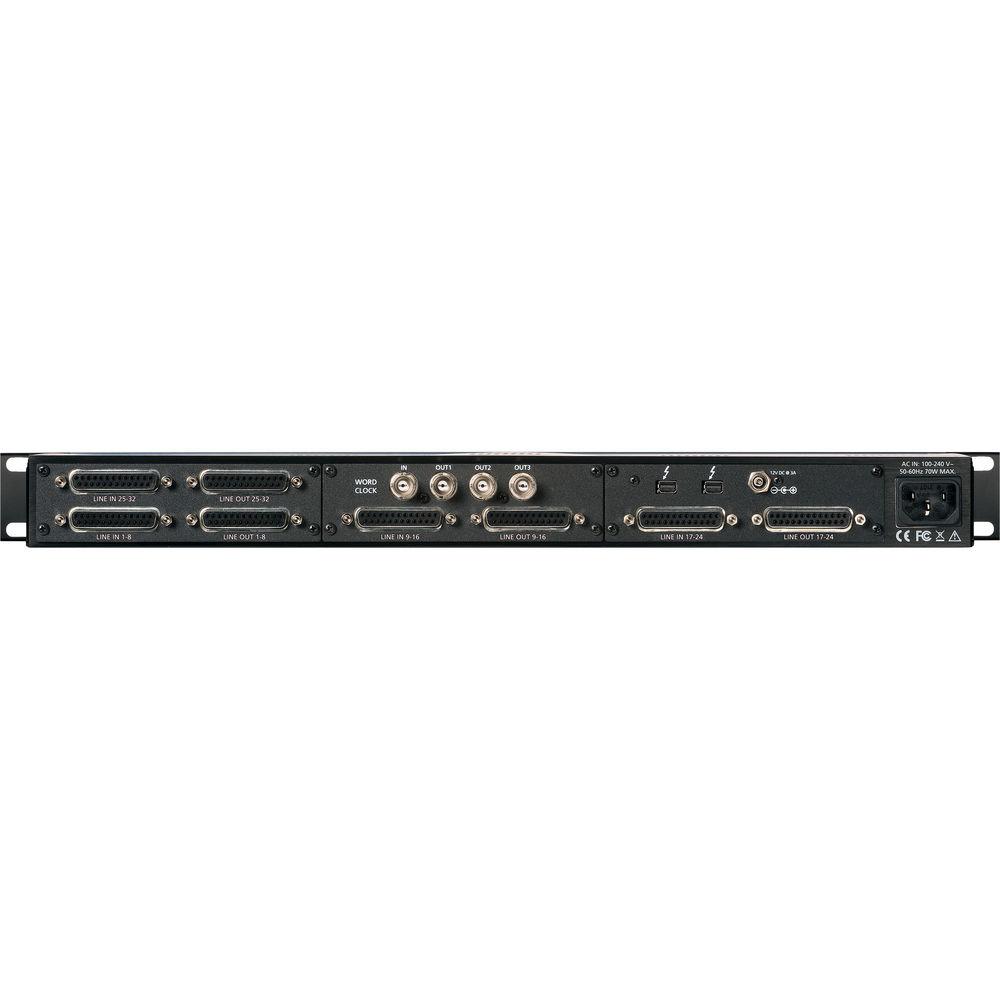

Technical parametersLynx Studio Technology AURORA(N) 32 HD Specs | | | Digital I/O | LT-HD LSlot interface with primary and expansion DigiLink ports, 32 x channel I/Os | | Analog I/O | 4 x 25-pin female D-sub, analog in 1-32
4 x 25-pin female D-sub, analog out 1-32 | | Word Clock I/O | 1 x BNC Word clock in
3 x BNC Word clock outs | | Compatibility | Supports Lynx LSlot expansion cards | | | | THD + N | -113 dB (1 kHz, -1 dBFS, 22 Hz to 22 kHz filter) | | Dynamic Range | 119 dB (A-weighted, -60 dBFS signal) | | Frequency Response Deviation | ±0.01 dB (20 Hz to 20 kHz band) | | Crosstalk | -130 dB (1 kHz, -1 dBFS) | | Full Scale Trim Settings | +6 dBV, 20 dBu | | | | THD + N | -108 dB (1 kHz, -1 dBFS, 22 Hz to 22 kHz filter) | | Dynamic Range | 120 dB (A-weighted, -60 dBFS signal) | | Frequency Response Deviation | ±0.025 dB (20 Hz to 20 kHz band) | | Crosstalk | -130 dB (1 kHz, -1 dBFS) | | Full Scale Trim Settings | +6 dBV, 20 dBu | | | | THD + N | -108 dB (1 kHz, -1 dBFS, 22 Hz to 22 kHz filter) | | Dynamic Range | 120 dB (A-weighted, -60 dBFS signal) | | Frequency Response Deviation | ± 0.025 dB (20 Hz to 20 kHz band) | | Crosstalk | -120 dB (1 kHz, -1 dBFS) | | Output Level | +18.4 dBu, maximum | | | | Clock | SynchroLock 2 | | Jitter | 300,000:1 reduction in jitter | | Lock Time | 5 seconds | | | | Channels | Up to 32 channels at 96 kHz
Up to 16 channels at 192 kHz | | Record Time | 8.3 hours on 256 GB card (32 channels, 96 kHz)
66.3 hours on 2 TB card (32 channels, 96 kHz) | | | | AC Power | Universal power supply (built-in) | | Form Factor | 1 RU | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 9.9 lb | | Box Dimensions (LxWxH) | 22.4 x 15.5 x 4.1" |
